comm.h File Reference

Generic communication module. More...

#include <sys/types.h>
#include <inttypes.h>
#include <pthread.h>
#include <stdarg.h>

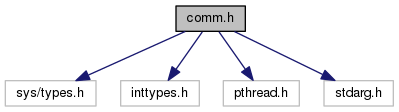

Include dependency graph for comm.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	comm_if_s
struct	comm_ctx_s

Typedefs
typedef struct log_ctx_s	log_ctx_t
typedef struct comm_ctx_s	comm_ctx_t
typedef enum comm_mode_enum	comm_mode_t
typedef struct comm_if_s	comm_if_t

Enumerations
enum	comm_mode_enum { COMM_MODE_IPUT = 0, COMM_MODE_OPUT, COMM_MODE_MAX }

Functions
int	comm_module_open (log_ctx_t *log_ctx)
void	comm_module_close ()
int	comm_module_opt (const char *tag,...)
comm_ctx_t *	comm_open (const char *url, const char *local_url, comm_mode_t comm_mode, log_ctx_t *log_ctx,...)
void	comm_close (comm_ctx_t **ref_comm_ctx)
int	comm_send (comm_ctx_t *comm_ctx, const void *buf, size_t count, struct timeval *timeout)
int	comm_recv (comm_ctx_t *comm_ctx, void **ref_buf, size_t *ref_count, char **ref_from, struct timeval *timeout)
int	comm_unblock (comm_ctx_t *comm_ctx)
int	comm_open_external (pthread_mutex_t *comm_ctx_mutex_external, const char *url, const char *local_url, comm_mode_t comm_mode, log_ctx_t *log_ctx, comm_ctx_t **ref_comm_ctx,...)
void	comm_close_external (pthread_mutex_t *comm_ctx_mutex_external, comm_ctx_t **ref_comm_ctx, log_ctx_t *log_ctx)
int	comm_reset_external (pthread_mutex_t *comm_ctx_mutex_external, const char *new_url, const char *local_url, comm_mode_t comm_mode, log_ctx_t *log_ctx, comm_ctx_t **ref_comm_ctx_curr,...)
int	comm_recv_external (pthread_mutex_t *comm_ctx_mutex_external, comm_ctx_t **ref_comm_ctx, void **ref_buf, size_t *ref_count, char **ref_from, struct timeval *timeout, log_ctx_t *log_ctx)

Detailed Description

Generic communication module.

Author

Rafael Antoniello

Definition in file comm.h.

Typedef Documentation

typedef struct comm_ctx_s comm_ctx_t

Communication module instance context structure ('handler').

Definition at line 48 of file comm.h.

typedef struct comm_if_s comm_if_t

Communication protocol interface structure prototype. Each specific communication module implementation will define a static and unambiguous interface of this type.

typedef enum comm_mode_enum comm_mode_t

Indicates the communication module instance mode: input or output.

Enumeration Type Documentation

enum comm_mode_enum

Indicates the communication module instance mode: input or output.

Definition at line 53 of file comm.h.

Function Documentation

void comm_module_close

(

)

Close communication module. This is a global function and should be called only once at the end of the life of the application.

Definition at line 129 of file comm.c.

int comm_module_open

(

log_ctx_t *

log_ctx

)

Open communication module. This is a global function and should be called only once at the very beginning and during the life of the application.

Parameters

log_ctx

Pointer to a externally defined LOG module context structure.

Returns

Status code (STAT_SUCCESS code in case of success, for other code values please refer to .stat_codes.h).

Definition at line 101 of file comm.c.

int comm_module_opt	(	const char *	tag,
			...
	)

Communication module options. This function represents the API of the communication module. This function is thread-safe and can be called concurrently.

Parameters

tag	Option tag, namely, option identifier string. The following options are available: "COMM_REGISTER_PROTO" "COMM_UNREGISTER_PROTO"
...	Variable list of parameters according to selected option. Refer to Tags description below to see the different additional parameters corresponding to each option tag.

Returns

Status code (STAT_SUCCESS code in case of success, for other code values please refer to .stat_codes.h).

Tags description (additional variable arguments per tag)

• Tag "COMM_REGISTER_PROTO":
  Register the interface of an specific communication protocol.
  Additional variable arguments for function comm_module_opt() are:


  Parameters

  comm_if

  Pointer to the protocol interface structure (static and unambiguous interface implementation of the type 'comm_if_t'). Code example: ... const comm_if_t comm_if_udp= { "udp", comm_udp_open, comm_udp_close, comm_udp_send, comm_udp_recv, comm_udp_unblock }; ... ret_code= comm_module_opt("COMM_REGISTER_PROTO", &comm_if_udp);

• Tag "COMM_UNREGISTER_PROTO":
  Unregister the interface of an specific communication protocol.
  Additional variable arguments for function comm_module_opt() are:


  Parameters

  scheme

  Pointer to a character string with the unambiguous protocol scheme name (for example: "udp", "file", ...). Code example: ret_code= comm_module_opt("COMM_UNREGISTER_PROTO", "udp");

Definition at line 150 of file comm.c.
